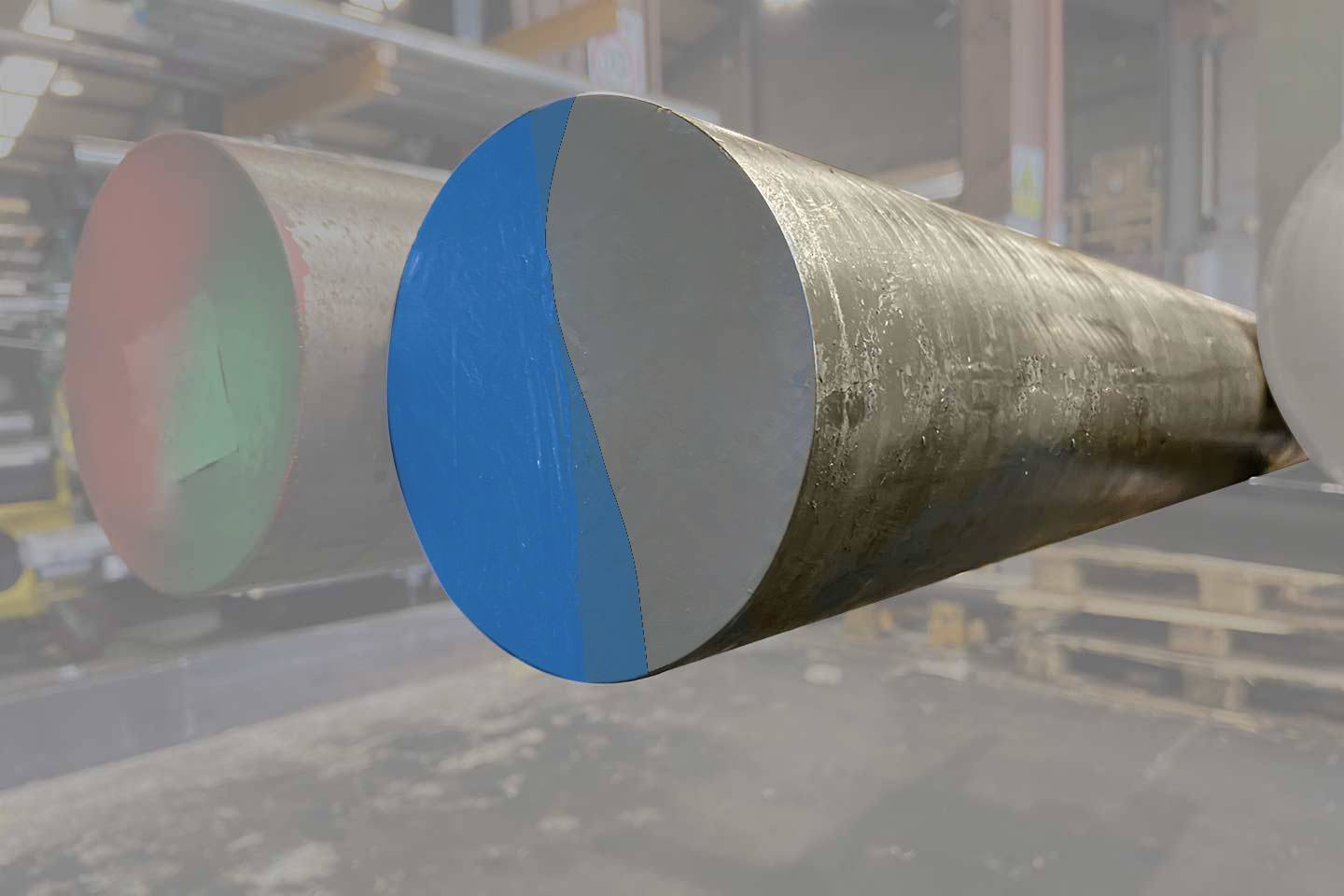

1.2083 Stainless Plastic Mould Bar

1.2083 is a chromium alloyed stainless plastic mould steel. Characterised by a combination of toughness, corrosion resistance and the ability to reach uniform hardness throughout large cross-sections. 1.2083 has the added benefits of steel that possess good wear resistance and excellent polishability. The combination of these properties provides the steel with an outstanding performance which makes 1.2083 tool steel particularly suitable for moulds for chemically aggressive plastics.

Industries: Plastics, Medical, Pharmaceutical, Chemical etc. Moulds for chemically aggressive products, moulds for optical products, moulds for medical products, mould and pressure tools, tooling and inserts for corrosive plastics and polymers, larger moulds due to outstanding through hardening abilities.

To view 1.2083 Bar chemical analysis, specification or shapes & sizes please click on the tabs below.

Colour Code:
Colour Code
This product appears in:
Tag:


Rounds (mm)
20.00
25.00
30.00
40.00
45.00
50.00
55.00
60.00
66.00
70.00
75.00
80.00
90.00
100.00
110.00
120.00
130.00
140.00
150.00
160.00
170.00
180.00
190.00
200.00
210.00
220.00
230.00
240.00
250.00
Flats (mm)
25 x 10
25 x 15
30 x 15
40 x 10
40 x 15
40 x 25
50 x 10
50 x 15
50 x 20
50 x 25
50 x 30
50 x 40
60 x 25
60 x 30
60 x 40
60 x 50
75 x 20
75 x 30
75 x 40
100 x 15
100 x 25
100 x 40
100 x 50
125 x 25
125 x 50
150 x 25
150 x 50

The above is our standard size range. If you do not see the shape, size or grade you require, please contact us as we will be happy to assist you with reaching your requirements.

Steel NameSteel NumberGradeBohlerMaterial Standard
1.2083X40Cr141.2083M310ASTM A681
CSiMnCr
0.400.700.4513.5
